A 16A outlet differs from a 32A outlet in its current capacity: a 32A outlet can handle twice the current, so it can power a device with approximately twice the power. At 400V three-phase, this equates to approximately 11kW for a 16A receptacle and 22kW for a 32A receptacle. Industrial 16A and 32A receptacles come in different designs and sizes, and the 32A circuit requires thicker wire and different protection.
To sum it up
- Rated current: 16A vs. 32A – a 32A socket can handle twice the load.
- Approximate power: 1 phase 230V – approximately 3.7 kW (16 A) and approximately 7.4 kW (32 A); 3 phase 400V – approximately 11 kW (16 A) and approximately 22 kW (32 A).
- Design: Industrial sockets for 16 A and 32 A are separate series - equipment is connected to a socket with the same nominal current.
- Installation: A 32A circuit requires a larger gauge wire and different protection - design and installation are performed by an electrician.
What do the 16A and 32A markings on a socket mean?
A number followed by the letter A stands for rated current The outlet's amperage rating is the maximum current the outlet can handle continuously. An outlet doesn't "produce" electricity; it only indicates the load it can safely handle.
The term "16 A socket" covers two different types. A standard 230 V household wall socket in Poland also has a 16 A rating. However, the most common comparison between 16 A and 32 A concerns industrial sockets (so-called power sockets, CEE), which comply with the IEC/EN 60309 standard. They are colour-coded:
- blue – single-phase 230 V (3 contacts: phase, neutral, protection),
- red – three-phase 400 V, most often 5-pin (3 phases, neutral, protective ground) or 4-pin (without neutral).
Both blue and red options are available in 16A and 32A versions (as well as higher current ratings).

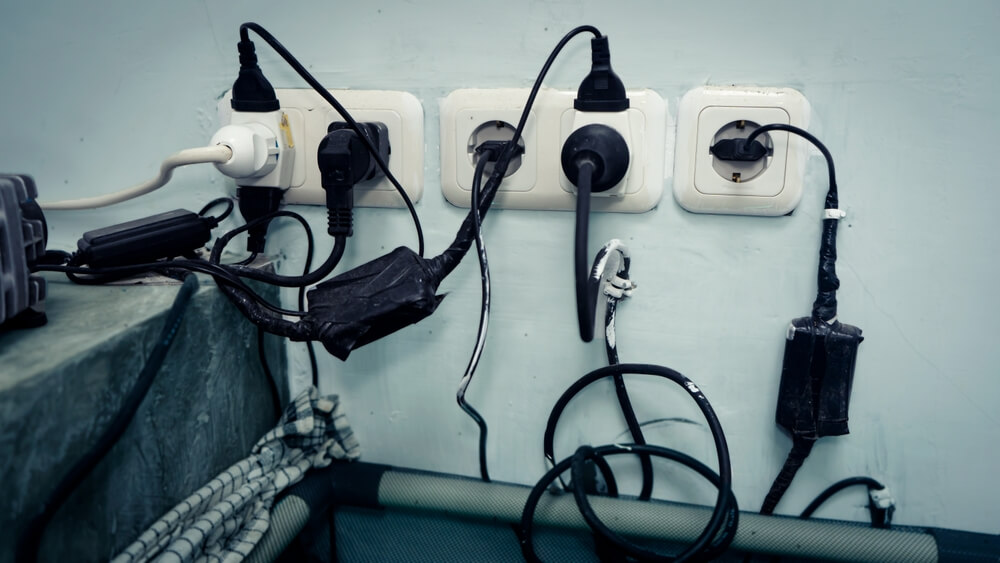

A standard 16-amp household outlet is sufficient for most appliances and electronics, such as a kettle, vacuum cleaner, washing machine, or television. A problem arises when several high-power devices are connected to a single circuit: their combined current may exceed the fuse rating, tripping the circuit breaker. 400-volt outlets, on the other hand, are used near cement mixers, circular saws, compressors, welders, car chargers, and stage equipment.
16A outlet vs 32A outlet – how many kW?
The approximate power is calculated using the formula: for one phase P = U × I , for three phases P = √3 × U × I (with a resistive load, such as a heater). The result for devices with motors will be lower due to the power factor.
- 16 A, 230 V: 230 × 16 ≈ 3.7 kW ,
- 32 A, 230 V: 230 × 32 ≈ 7.4 kW ,
- 16 A, 400 V (3 phase): 1.73 × 400 × 16 ≈ 11 kW ,
- 32 A, 400 V (3 phases): 1.73 × 400 × 32 ≈ 22 kW .
These are the maximum values for the outlet. The actual available power also depends on the wire size, circuit protection, and bandwidth building specified in the agreement with the network operator.
Comparison table: 16A or 32A socket
| Characteristic | 16A socket | 32A socket |
|---|---|---|
| Rated current | 16 A | 32 A |
| Approximate supply voltage: 1 phase 230 V. | approximately 3.7 kW | approximately 7.4 kW |
| Approximate supply voltage: 3 phase, 400 V. | approximately 11 kW | approximately 22 kW |
| Socket and plug dimensions | Less | Big |
| Power cord | Smaller cross section | Larger cross section |
| Typical place | House, garage, workshop, small appliances | Workshops, construction sites, powerful equipment, 22 kW chargers. |
| Colour (CEE sockets) | Blue 230V / Red 400V | Blue 230V / Red 400V |
Cable and protection – why simply replacing the socket is not enough.
The socket is just the end of the circuit. The wire, overcurrent protection, and the socket itself must be matched. A circuit with a 16 A socket typically uses a wire with a cross-section of 5 x 2.5 mm² or 5 x 4 mm², depending on the length and load. A 32 A circuit requires a significantly larger wire and protection designed for the wire, not just the socket.
Installing a 32A outlet on an existing, thinner 16A cable is dangerous: the cable could overheat, damaging the insulation and causing a fire. The choice of cable size depends on factors such as the length of the cable run, the cable layout, and voltage drop, so Calculations and installation must be performed by a licensed electrician in accordance with current standards.
In addition to overcurrent protection, outlet circuits must be protected differential circuit breaker , which shuts off the power in the event of a current leak, for example, through a person's body. After installing a new circuit, the electrician takes measurements and prepares a report – it's a good idea to keep this report with your home or workshop documentation.
Which outlet should I choose - 16A or 32A?
- Check the device's rating plate. The manufacturer specifies the power, voltage and recommended plug type – these are the main criteria.
- Does the device have a 16A plug? Select a 16A outlet. There's no point in creating a 32A circuit for equipment that doesn't use it.
- Planning to install a charger for your electric vehicle? The power (eg 11kW or 22kW) depends on the on-board charger, wall charger and connection type - discuss this with your installer.
- Garage or workshop with reserves for the future? An electrician can plan a circuit with a backup, but only if the connection allows it.
- Need to connect 16A equipment to a 32A outlet? Use only factory-issued 16A protected adapters - no quick modifications.
Frequently Asked Questions (FAQ)
What is the kW rating of a 32A socket?
At 400V three-phase, a 32A socket provides approximately 22kW of power, and at 230V single-phase, approximately 7.4kW. Actual power depends on installation parameters and connection voltage.
What is the kW rating of a 16 amp outlet?
Approximately 11 kW at 400 V three-phase and approximately 3.7 kW at 230 V single-phase.
Can I plug a 16A device into a 32A outlet?
Industrial plugs and sockets are rated for the same current. If you need to connect 16 A equipment to a 32 A outlet, use the factory-installed adapter with its own 16 A fuse. Avoid making any modifications to your home's electrical system.
Can I replace a 16A outlet with a 32A outlet myself?
Don't try this yourself. A 32-amp outlet requires a larger wire gauge and different protection. A licensed electrician should design and install the outlet.
What is the difference between a blue and a red rosette?
Color indicates voltage. Blue industrial sockets are designed for single-phase voltage (230 V), while red ones are designed for three-phase voltage (400 V).
